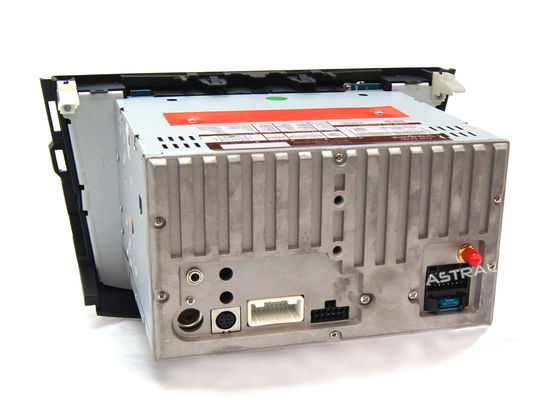

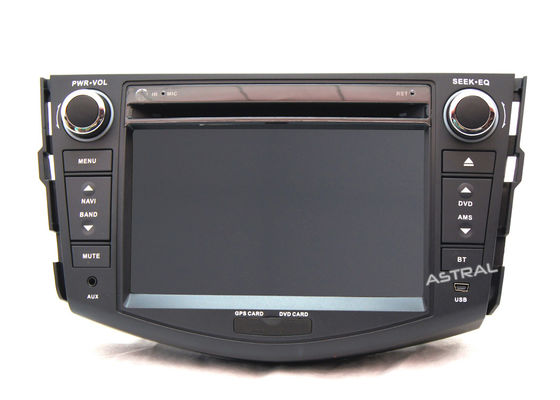

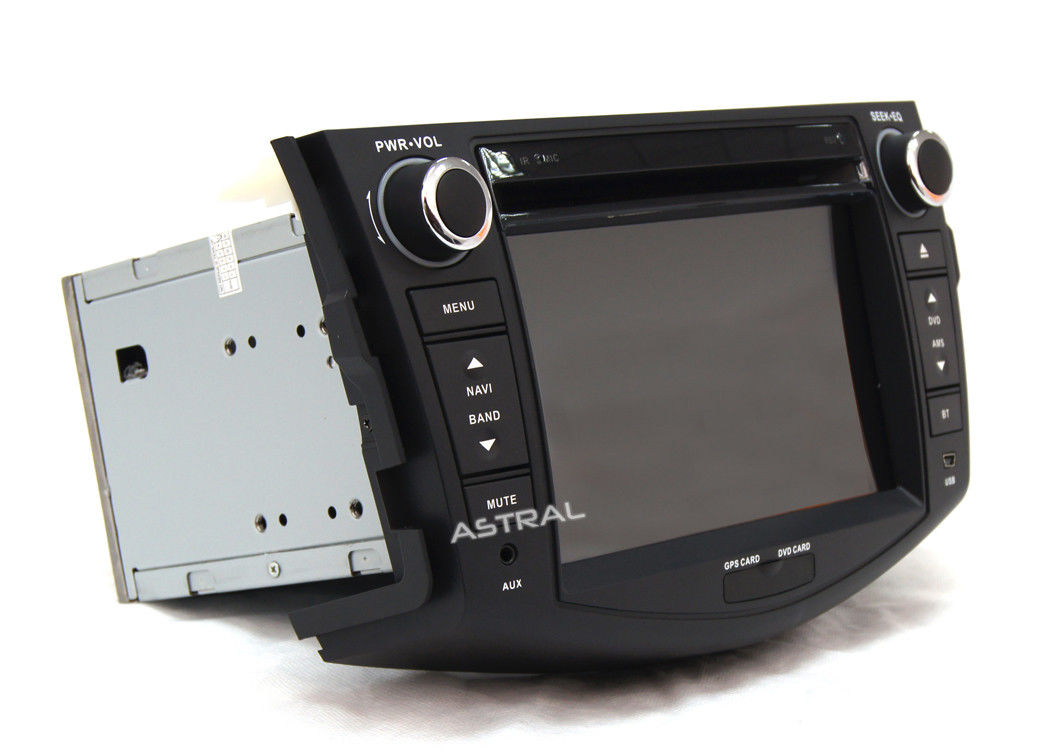

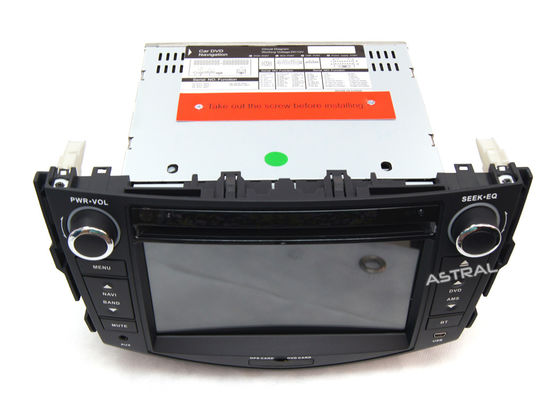

Auto Video Player TOYOTA GPS Navigation Android Car Media DVD System

OS

Android 4.2.2

CPU

CorteX A9 Dual Core 1GHz Mstar786

ROM

8G EMMC

SD

support 32G SD card

AUDIO

MP3,WMA,WAV,OGG,FLAC

VIDEO

RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc.

GPS MODULE

Support GPS and Glonass

Temperature

-20°C TO +70°C

Navigation software

IGO, navitel,  Sygic etc

DVD decoder

SUNPLUS 8202TQ

Screen

800*480 / 1024*600 capacitive touch screen.

FM IC

NXP 6624 with RDS

TV

Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2)

3G GPRS

External (optional)3G dongle

WIFI

Build-in or External

Bluetooth

A2DP and Bluetooth OBD

Steering Wheel control

Support ( Some cars need CAN BUS )

Rear view video

Support Automative turn on when reversing

Power on

16S~20S, high speed turn on system

Power off

Rearly shut off the OS, <10mA

work volt

DC12V

Operate volt range

10.8V ~16V

Max current

10A

Features

GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control,

SD/USB multimedia palyback, Rear Camera Input, Aux In,

Anti shock

Mechanical anti-shock & Electronic anti-shock

Screen Resolution

800*480

Touch Screen

Capacitive touch screen

Display mode

16:9

OSD Language

English,Russian, Hebrew, Arabic,German,Spanish,

French,Thai,Italian,etc.

Radio Tuner

FM/AM

Station Preset Qty.

18

Support RDS

Yes

Radio response bandwidth

AM: 522~1620 KHz, FM: 87.5~108 MHz

Video Output System

NTSC,PAL

Signal-to-Noise Ratio

85dB

Media Type

CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW,

DVD+R/RW,CD-R/RW,JPEG,etc.

Amplifier output power /

channel qty

45W*4

EQ mode

Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic;

Audio Line out channel

5.1

Bluetooth Version

V2.0,support A2DP(Bluetooth Stereo Music),

can play stereo music through Bluetooth

Microphone

Built-in, External is optional

Reversing Input mode

Screen automatic display rear camera video when reversing

whether power off or on.

Rear Camera

Is optional for choose

SD/USB/iPod Playback mode

Automatic paly multimedia when the device connected unit

Video Input

2 Channel, One for camera, one for aux in

Video Output

2 Channel

Audio Input

1 Channel for aux in

Audio Output

4.1 Channel
