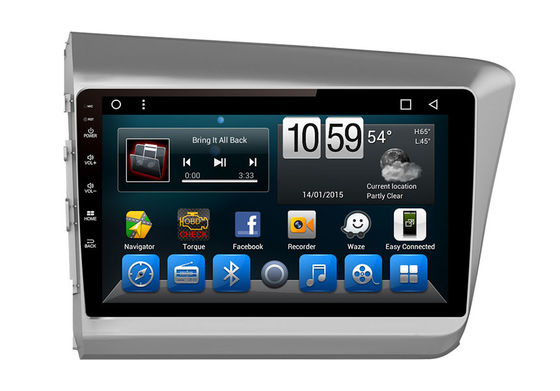

Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS

Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS

    • Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS
    • Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS
    • Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS
  • Honda Civic 2012 Double Din Stereo Radio Mirror Link Navigation 8- Core built in GPS

    Product Details:

    Place of Origin: China
    Brand Name: ASTRAL / OEM
    Certification: CE, FCC, FDA, ROHS
    Model Number: AST-1033

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Delivery Time: 7-25days
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Screen Size: 10.1 Inch Operation System: Pure Android 6.0/7.1
    GPS: Built-in

    Honda Civic 2012 Double Din Stereo Radio Honda Navigation System 8-Core





    Android 6.0 Quad Core:

    2G+16G
    2G+32G


    Android 6.0 7.1 Qcta core:

    1G/2G+16G
    1G/2G+32G



    – System: Android System
    – Car Make: Honda Civic 2012
    – Placement: Dashboard
    – High temperature loader
    – Standard function: DVD+Radio+Touch screen+GPS+Ipod+Bluetooth+Steering wheel control+RDS
    – HD Resolution Capacitive Touch Panel
    – Capacitive touch screen 800*480/1024*600
    – Screen Size: 10.1 Inch
    – Rear View camera input Function (FOR REAR VIEW CAMERA!)
    – AUX IN Function
    – Support the Audio playback format of MP3/WMA/WAV/MKV/FLAC/OGG/APE
    – Support the Video playback format of RM/RMVB/VOB/DAT/MP1/MP2/DIVX/XVID/MP4/H263/H264/FLV/3GP/SWF/AVI/ASF/MJPEG ect



    Languages: English,Chinese,Finnish,Polish,Portuguese,Vietnamese,German,Persian,French,Hebrew,

    Russian,Arabic,Japanese,Dutch, Spanish,Turkish,etc. 60 languages can be customized.



    Honda Navigation System Android Specifications
    System
    CPU Corte X A7 Quad core 1.6GHz, R16
    Memory/RAM : DDR3 1GB/2GB
    Memory/Flash: 4G/8G/16G/32G EMMC
    SD support 32G SD card
    VIDEO RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. alomost all format was supported
    AUDIO MP3,WMA,WAV,OGG,FLAC
    GPS MODULE Support GPS and Glonass
    OS Android 6.0/7.1
    Temperature -20°C TO +70°C

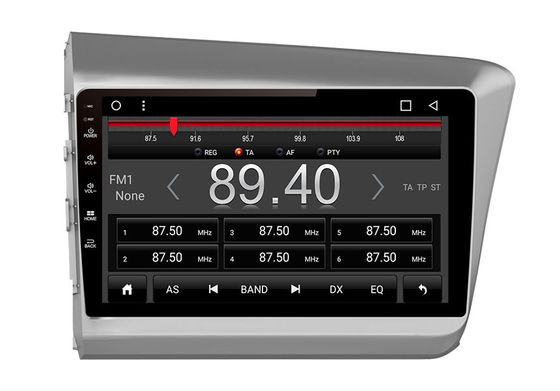

    Radio Tuner FM/AM

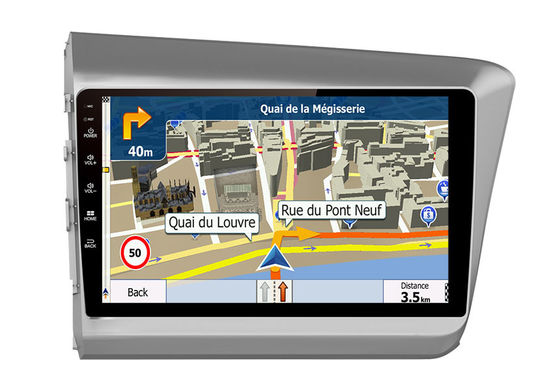

    Navigation software IGO, navitel, Sygic etc
    DVD decoder SUNPLUS 8202TQ
    Screen SUPPORT HD TFT (800*480/1024*600)and capacitive touch screen.
    FM IC NXP 6624 with RDS
    WIFI Build-in or External
    3G GPRS External (optional)3G dongle
    TV Optional Analog or Digital TV( DVB-T, ISDB-T,DVB-T2)
    Bluetooth A2DP and Bluetooth OBD
    Steering Wheel control Support (Some cars need CAN BUS)
    Rear view video Support Automative turn on when reversing’
    Power on 16S~20S, high speed turn on system
    Power off Rearly shut off the OS, <10mA
    work volt DC12V
    Operate volt range 10.8V ~16V
    Max current 10A
    Form Factor In-Dash
    Enclosure Type 2 DIN
    Features GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In,
    Ill control Yes
    Anti shock Mechanical anti-shock & Electronic anti-shock
    Motorized slide-down Face NO
    Panel Angle Control NO
    Display
    Display mode 16:09
    Screen Size 6.2; 7; 8; 9; 10.1; 10.4 inch
    Touch Screen Capacitive touch screen
    Screen Resolution 800*480/1024*600


    Q: Can I do OEM/ODM Car DVD GPS Navigation?

    A: Yes, OEM/ODM Car DVD service is always welcomed.
    what you should do is just to tell us all your detail requirement then we will offer our



    Q: Can I buy a sample?
    A: Yes, you can definitely buy a sample for quality evaluation first.
    Please contact us if any other questions...Thanks
