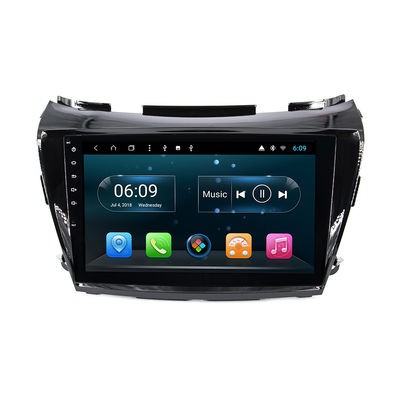

10.1-inch Double Din Android Auto Stereo Multimedia Video Car Radio DVD Player Vehicle Android Unit GPS Navigation entertainment PC for Nissan Murano in wholesale support GPS Navigation Mirror Link 3G 4G WiFi Radio Map USB SD OBD2 DVR Bluetooth iPod RDS DAB+
Android Auto Screen Main Features:
- Car make: Nissan Murano
- 10.1 Inch super wide-viewing Screen, High sensitive 1024*600 HD multi-touch digital screen.
- Android 6.0/7.1/8.1/9.0 Quad-core/Octa-core OS optional.
- 1GB/2GB/4GB RAM optional, 16GB/32GB/64GB ROM optional.
- Support Rear View Camera(Optional), Digital TV Receiver(Optional), DVR/Video input.
- GPS/Glonass navigation with Free IGO maps and GPS Antenna.
- FM/AM Radio Tuner with RDS.
- Original OE design, plug and play.
- Built-in WiFi, support external 3G/4G Dongle for internet.
- Integrated mirror-link to connect Android/IOS phone.
- USB Port and SD Slots, Support USB Stick and Micro SD Card.
- Plays, charges and display song-list from iPod/iPhone4/5/iPad.
- Support Steering Wheel Control, Hand Brake Control.
- Free Microphone and external microphone Jack on the back.
- Plays stereo music through Hands-free Bluetooth from your Phone.
- Download phonebook to this unit, search & find a contact in downloaded phone book.
- 4 x 45w Surround Stereo, Subwoofer Output, support the newest 10-Band EQ.
- Multiple button light colours: Red/Green/Blue/Yellow/Magenta/Cyan/White,etc.
- Display could be shut off but keep Sound.
- Built-in Clock and Calendar, Clock/Date/Week/Time Zone adjustable, can use GPS Time.
- Dual zone function, Rear Passengers can watch DVD or TV while driver can use GPS.
- Electronic Anti-Shock, Last Position Memory.
Android Auto Radio Player Specifications:
| System |
| CPU |
Cortex A7 Quad/Octa Core 1.6GHz |
Steering Wheel Control |
Support |
| Memory/RAM |
1GB/2GB/4GB optional |
Mirror Link |
Support |
| Memory/Flash |
16GB/32GB/64GB optional |
DVR(Optional) |
Built-in or external |
| Operating System |
Android 4.4/6.0/7.1/8.1/9.0 |
OSD Language |
English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese, etc. |
| TV(OPTIONAL) |
Build-in Analog or Digital TV( DVB-T, ISDB-T, DVB-T2) |
Max. Micro SD Capacity Supported |
1TB |
| Display |
| Screen Type |
HD LCD-TFT, Scrape-prevent, Multiple Touch, Digital Capacitive screen |
Screen Size |
10.1 inch |
| Display Mode |
16: 09 |
Brightness Control |
Yes |
| Resolution |
1024*600 |
Icon Drag |
Support |
| Navigation |
| Navigation |
Support GPS and Glonass |
Maps Storage |
Built in or external SD card |
| Supportable Navigation Software |
TOMTOM, ROUTE66, IGO, NAVITEL, SYGIC, etc |
Other |
Music/Radio/Bluetooth…can still work when GPS navigation is working |
| Navigation Language |
Depends on map software options |
|
|
| Network |
| Internet |
Support 3G/4G network, need external 3G/4G dongle |
WiFi |
Built-in |
| Bluetooth |
| Support |
A2DP and Bluetooth OBD |
|
|
| Audio/Video |
| Audio/Video |
Support most formats |
Rear View Video |
Quick switch within 2s |
| Signal-to-Noise Ratio |
≥85dB |
Rear Camera(Optional) |
Support |
| Radio |
| Radio Tuner |
FM/AM |
Radio Response bandwidth |
AM: 522~1620 kHz, FM: 87.5~108 MHz |
| Station Preset Qty. |
36 Preset Radio Stations (FM: 3*6, AM: 3*6) |
Support RDS |
Yes |
| DVD |
| Video Output System |
NTSC, PAL |
Media Type |
CD, HDCD, MP3, WMA, VCD, DVD, DVD-R/RW, DVD+R/RW, CD-R/RW, JPEG, etc. |
| Amplifier |
| Amplifier output power / channel qty. |
45W*4 |
Subwoofer |
Yes |
| EQ Mode |
Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic |
Audio Line Out Channel |
5.1 |
| Loudness Control |
Yes |
|
|
| Mechanical |
| Form Factor |
In-Dash |
Audio Input |
1 Channel |
| Enclosure Type |
1 DIN |
Audio Output |
4.1 Channel |
| Video Input |
3 Channel, 1 for DVR, 1 for camera, 1 for aux in |
Connector Type |
1*Power, 2*USB, 1*GPS ANTENNA, 1*WiFi ANTENNA |
| Video Output |
1 Channel |
SD Slot |
2 Micro SD slots |
| Electrical |
| Power On |
16S~20S, high speed turn on system |
Standby Current |
≤10mA |
| Power Off |
Immediately shut off the OS |
Rated Working Voltage |
DC12V |
| Screen-extinguish Mode |
Press POWER shortly to activate |
Operate Voltage Range |
10.8V ~16V |
| Max. Current |
10A |
Anti Shock |
Mechanical anti-shock & Electronic anti-shock |
| Environmental |
| Operating Temperature |
-20°C to +70°C |
Storage Temperature |
-30°C to +80°C |
Why Astral Electronics?
Founded in 2009, Astral Electronics Technology Co.,Ltd is a leading OEM manufacturer in in-vehicle multimedia systems from China, with over 500 models available and keep developing new products regularly.
Our mission is to provide premium quality products and services in reasonable prices to help our partners and users.
With advanced manufacturing/testing facilities and well-trained staffs, based on reliable QC mechanism, long lasting cooperation with our partners from America, Europe, Middle East and Southeast Asia and others were established. And we also hope more and more friends to try our samples and cooperate with us in a long run.
1. OEM factory since 2009, with years of experiences in working with car manufacturers or well-known brands.
2. Hundreds of models available for different car brands, and keep releasing new products regularly.
3. Support Customization, and developing special designs as required available.
4. Quality guarantee by Systemized & Standardized quality system: OCA lamination for screen assembly, 8-plus hours aging test, high/low temperature test, Vibration test, 100% QC passed before delivery, etc.
5. CE/RoHs approved products, and other certificates available.
6. Multiple material sources to ensure stable supply and on-time delivery.
7. Local technical support negotiable.
Q&A
Q: What to provide for Astral sales team's further check if uncertain about the model fits a car or not?
A: 1. Manufactured year of the car.
2. Car dash pictures.
3. Check if the car has factory accessories like rear camera, parking radar, power amplifier, subwoofer, 360 panorama camera system, built-in GPS navigation, automatic or manual climate control system, etc.
Q: What could be customized?
A: 1. Customized logo display or print on the device
2. Customized UI
3. Design a customized gift box/carton for packing
4. Develop special applications for Android
5. Others
