Product Details:
Payment & Shipping Terms:
|
Warranty: | 12 Months | Operation System: | Android 7.1|8.0|9.0 |
---|---|---|---|
CPU: | Quad Core|octa-core 1.6GHz | Screen: | Multi-touch Capacitive Screen |
RAM: | 2GB|4GB | ROM: | 32GB|64GB |
OSD Language: | Multi-language,English/Russian/Spanish/French/Portuguese/Arabic/Dutch Etc | Screen Size: | 9.7" Tesla Screen |
GPS: | Support | Type: | Touch Screen Car Stereo |
Bluetooth: | Support | Dual Zone Function: | SUPPORT |
Steering Wheel Control: | Supported | WiFi: | Built In |
CarPlay: | Optional&Support By USB | DSP: | Optional |
Built-in 4G SIM: | Optional | Android Auto: | Support By USB |
USB: | Support | FM|AM Radio: | Built In |
High Light: | car navigation systems in dash,gps car navigator |

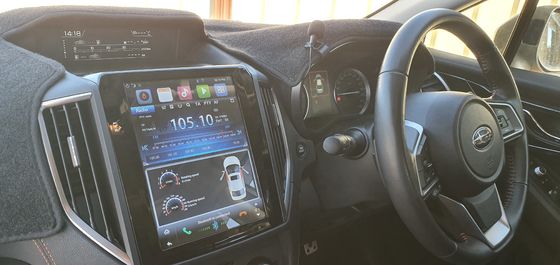

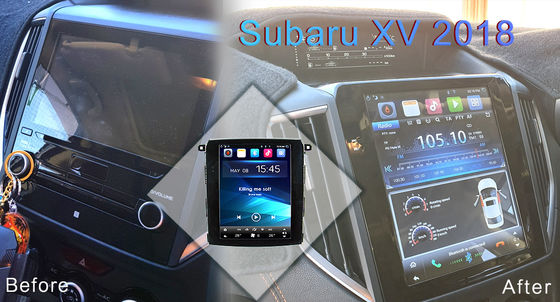

9.7 inch Subaru XV Impreza Crosstrek 2018-2019 Single Din Android Sat Nav Head Unit supporting GPS Navigation Multimedia Mirror-Link 3G/4G WiFi FM/AM Radio Bluetooth USB SD OBD2 DVR DAB+ TPMS DTV Panorama Camera Steering Wheel Control
OS details of Subaru XV 2018 Android Car Head Unit:
- Multiple Android solutions optional: Android 7.1/8.1/9.0 Quad-core/Octa-core OS with 2GB/4GB RAM, 32GB/64GB ROM.
- Multiple OSD language options: English, Russian, Arabic, German, Spanish, French, Portuguese, etc.
- Integrated mirror-link for connecting with Android/IOS phone.
Display performance of Subaru XV 2018 Android Auto GPS Navigator

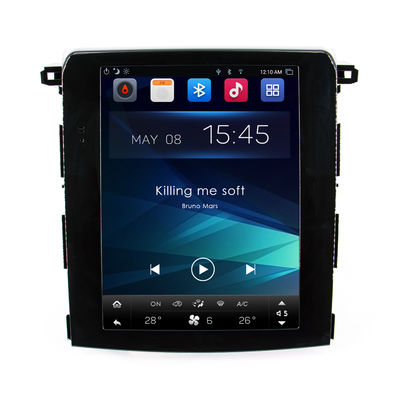

- 9.7 inch HD capacitive vertical touchscreen.
- Support Rear View Camera (optional), Digital TV Receiver (optional), DVR/Video/Aux input.

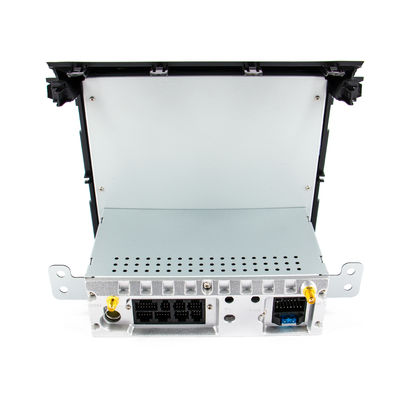

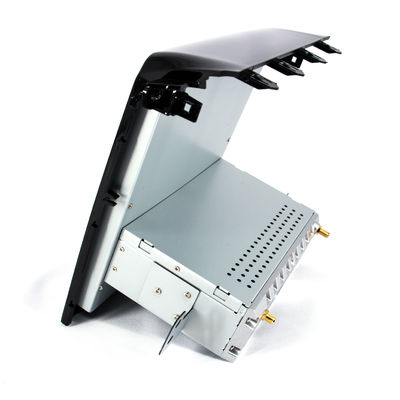

- Pin-to-Pin connectors and standard wiring harnesses for plug&play.
- Multi-color RGB backlight options while screen brightness controllable, and display could be turned off while keeping the unit running.
- Dual Zone supported, passengers at the rear seats can watch DVD or TV while the driver uses GPS for navigation.
- High performance for wide range of operating temperature from -20°C to +70°C.
- Picture-in-Picture display, Pop-up/floating video play, Split-screen mode supported.
Audio Radio performance of Subaru XV 2018 Android Car Infotainment System
- Built-in FM/AM Radio Tuner with RDS, and up to 36 preset radio stations with radio response bandwidth: AM: 522~1620 KHz, FM: 87.5~108 MHz. Also support external DAB+ receiver via USB.
- Support iPod ready stereo, external USB flash, SD cards.
- 4 x 45w Surround Stereo/Subwoofer output, and support multiple EQ modes.
- Built-in DSP optional.
Connection performance of Subaru XV 2018 Android Auto Entertainment System
- Built-in GPS/A-GPS/Glonass navigation, and multiple navigation applications supported.
- Built-in WiFi.
- Support Built-in 4G SIM for internet access.
- Support original Steering Wheel Control (SWC).
- Built-in Bluetooth for hands-free call making and music streaming, support A2DP and Bluetooth OBDII (optional).
- Support Phonebook downloading and search a contact in the downloaded phonebook.
- Built-in Clock and Calendar, Clock/Date/Week/Time Zone adjustable, can use GPS Time.
Nature of Business: Professional OEM Manufacturer / Original Manufacturer
Additional Business: Exporter / Wholesaler / Trader
here link you will see more we have for tesla type car stereo multimedia https://www.astral-elec.com/tesla-style-head-unit/
Specifications of Subaru XV 2018 Android Screen
General | |||
Operating System | Android 64-bit OS 7.1|8.1 | Processor | Cortex A7 octa-core CPU, 1.6GHz |
Memory|RAM | 2GB|4GB DDR3 | Steering Wheel Control | Support (CANBUS needed) |
Memory|ROM | 32GB|64GB EMMC | Mirror-Link | Built in |
OSD Language Options | English, Russian, Arabic, German, Spanish, French, Thai, Italian, Vietnamese, Portuguese, etc. | ||
Optional Accessories Supported | DAB+ Tuner, TPMS, DVR, OBD|OBDII, Digital TV Receiver(DVB-T|DVB-T2|ISDB-T|ATSC), Rear Camera, CANBUS decoder, Built-in Microphone, Carplay|Android Auto. | ||
Display | |||
Screen Type | HD LCD-TFT, Scrape-prevent, Multiple Touch, Digital Capacitive screen | Screen Size | 9.7 inch |
Resolution | 1024*768 | Dual Zone Function | Support |
Navigation | |||
Navigation | Built-in GPS|A-GPS and BDS | Navigation Softwares Supported | TOMTOM, ROUTE66, IGO, NAVITEL,SYGIC, Yandex, Waze, etc |
Maps Storage | Built in or external SD card | Navigation Language Option | Depends on map software options |
Others | Music|Radio|Bluetooth…can still work when GPS navigation is working | ||
Internet Access | |||
3G|4G | Supported, external 3G|4G dongle via USB needed | WLAN | 802.11bgn 2.4GHz |
Bluetooth | |||
Bluetooth Version | Bluetooth V4.1 support BR|EDR, BLE Bluetooth V3.0 support EDR |
A2DP|Bluetooth OBD | Support |
Hands-free Call | Support | Bluetooth Music Play | Support |
Phonebook Downloading | Support | ||
Multimedia | |||
Audio Format Supported | Support MP3, WMA, AAC, RM, FLAC, etc. | Video Format Supported | Support AVI, MKV, MOV, MP4, MPEG, MPG, RMVB, H.265, etc. |
Photo Format Supported | JPG, BMP, JEPG, GIF, PNG, etc. | 1080P Video Play | Support |
Audio Signal-to-Noise Ratio | ≥85dB | Reversing Video Display | Quick switch within 2s |
Radio | |||
Radio Tuner | FM|AM | Radio Response Bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz |
RDS | Support | Station Preset Qty. | 36 Preset Radio Stations (FM: 3*6, AM: 3*6) |
Amplifier | |||
Amplifier Output Power | Channel Qty. | 45W*4 | Subwoofer | Support |
EQ Modes | Normal, Jazz, Pop, Classical, Rock, News, Urban, Techno | Audio Output Channel | Audio 5.1 |
Loudness Control | Yes | ||
Mechanical | |||
Form Factor | In-Dash | Subwoofer Output | 1 Channel |
Enclosure Type | 1 DIN | Antenna | 2 totally: 1 for GPS,1 for WiFi |
Video Input | 3 Channels, 1 for DVR, 1 for Camera, 1 for Aux in | USB | 2 Channels, USB3.0 |
Video Output | 1 Channel | Max.Qty. of SD Slot Supported | 2 |
Audio Input | 2 Channels | Audio Output | 4 Channels |
Micphone(MIC) | External, and support in-built MIC for some models(optional) | ||
Electrical | |||
Power On | 16S~20S, quick booting up | Standby Current | ≤10mA |
Power Off | Immediately, within 2S | Rated Working Voltage | DC12V |
Shut off Display | Press POWER shortly to activate | Operating Voltage Range | 10.8V ~16V |
Max. Operating Current | 10A | Anti Shock | Mechanical anti-shock & Electronic anti-shock |
Environmental | |||
Operating Temperature | -20°C to +70°C | Storage Temperature | -30°C to +80°C |
