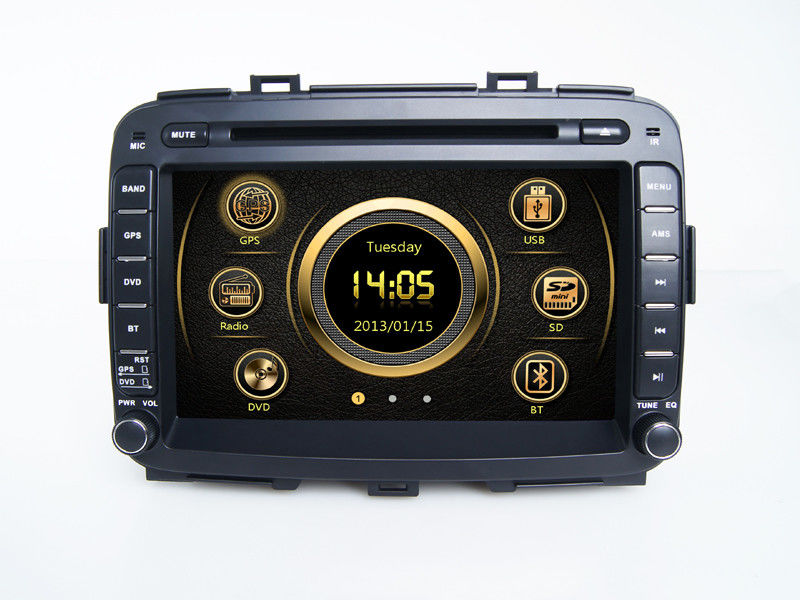

Doble Din KIA DVD Player Multimedia Bluetooth Wince for Carens
Quick detail:
General functions:
1.8 Inch car DVD GPS player for Kia Carens
2. 800MHZ CPU +128RAM
3. Capacitive Touch Screen (800*480)
4. Build in Radio with RDS
5. Build in DVD
6. Build in Bluetooth ,phone book ,A2DP
7. Build in Navigation system ,wince 6.0 system
8. Build in USB / SD
9. Build in 3G
10. MP4/5: supported
11. Support Ipod
12. Rear Camera input ,show on LCD automaticlly once backing car.
13. Ipod: supported
14. subwoofer output
15. Build in Analogy tv
16. Backgrounds optional
17. Start logo optional
Specifications:
| Overload | 4Ω |
|
Power voltage |
DC12v(9v~16v) |
| Disc support | SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX |
|
Max power output |
45W x 4 |
|
|
7db |
|
Bass 20Hz |
|
|
Treble 20KHz |
|
|
Output port |
Audio: 4 independent output channels |
|
Video: 1 Composite video output channels |
|
|
|
Audio: 2 independent input channels |
|
Video: 3 composite video input channels |
|
|
Video Features |
Video output level: 1.0 VP-P(75Ω overload) |
|
Video frequency: 20Hz-20KHz(+1 dB) |
|
|
Temperature |
-10℃+70℃ |
|
Humidity |
15-75% (no water frozen) |
|
VCD/CD PART |
|
|
Video system |
Auto/NTSC/PAL |
|
S/N(signal to noise ratio) |
60dB( 1KHz 0dB) |
|
Resolution |
55dB |
|
Frequency response |
20Hz-20KHz |
|
Dynamic range |
80dB |
|
Distortion |
0.4% |
|
DVD PART |
|
|
Video system |
Auto/NTSC/PAL |
|
S/N(signal to noise ratio) |
75dB( 1KHz 0dB) |
|
Resolution |
60dB |
|
Frequency response |
20Hz-20KHz |
|
Dynamic range |
80dB |
|
Distortion |
0.4% |
|
FM PART |
|
|
Frequency range |
87.5-108.0MHz |
|
Practical sensitivity |
22dB |
|
Down sensitivity |
9dB |
|
S/N(signal to noise ratio) |
60dB (1KHz 0dB) |
|
Resolution |
32dB |
|
Frequency response |
40Hz -13KHz |
|
Medium frequency |
10.7MHz |
|
AM PART |
|
|
Frequency range |
522-1620KHz |
|
Down sensitivity |
35dB |
|
Practical sensitivity |
28dB |
|
S/N(signal to noise ratio) |
45dB (1KHz 0dB) |
|
Medium frequency |
450MHz |
|
Frequency response |
40Hz-2.3KHz |
