Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Touch Screen: | Full Touch |
|---|---|---|---|
| Screen Size: | 9.0 Inch | DIN: | 1 DIN |
| Android Version: | Android 6.0 /7.1 / 8.0 All Available | CPU: | Quad/octa Core |
| RAM: | 1GB/2GB | ROM: | 16GB/32GB |
| High Light: | multi-media dvd player,car gps navigation |
||

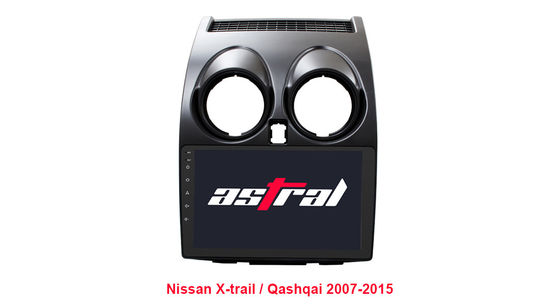

Digital Touch Screen Vehicle Navigation System OEM Nissan X Trail Qashqai 1 Din Android
Car Make: Nissan Qashqai / X-Trail 2013-2016
Placement: Dashboard
OS : Prue Android 6.0/7.1/8.0
CPU: Cortex A7 Quad/Octa core 1.6GHz
Memory/RAM : DDR3 1GB/2GB
Memory/Flash: 16G/32G EMMC
Screen type: Digital touch screen
Screen Size: 9.0-Inch Full Touch
Screen resolution: 1024*600
AM/FM Radio: AM store 12 stations,FM store 18stations,support RDS function
GPS Navigation: Support series of GPS software
Network : 3G Dongle,WiFi Dongle
Languages: Chinese,Finnish,Russian,Dutch,Arabic,German,Vietnamese,French, Japanese,Turkish, Persian,Portuguese,English,Spanish,Hebrew,Polish,etc. 60 languages can be customized.
| Nissan Qashqai X-trail Automobile Gps Navigation System Android 6.0 Specifications | |||
| System | |||
| CPU | Corte X A7 Quad/Octa core 1.6GHz | ||
| Memory/RAM : | DDR3 1GB/2GB | ||
| Memory/Flash: | 16G/32G EMMC | ||
| SD | support 32G SD card | ||
| VIDEO | RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. alomost all format was supported | ||
| AUDIO | MP3,WMA,WAV,OGG,FLAC | ||
| GPS MODULE | Support GPS and Glonass | ||
| OS | Android 6.0/7.1/8.0 | ||
| Temperature | -20°C TO +70°C | ||
| Radio Tuner | FM/AM | ||
| Navigation software | IGO, navitel, Sygic etc | ||
| DVD decoder | SUNPLUS 8202TQ | ||
| Screen | SUPPORT HD TFT (800*480/1024*600/1024*768)and capacitive touch screen. | ||
| FM IC | NXP 6624 with RDS | ||
| WIFI | Build-in or External | ||
| 3G GPRS | External (optional)3G dongle | ||
| TV | Optional Analog or Digital TV( DVB-T, ISDB-T,DVB-T2) | ||
| Bluetooth | A2DP and Bluetooth OBD | ||
| Steering Wheel control | Support (Some cars need CAN BUS) | ||
| Rear view video | Support Automative turn on when reversing’ | ||
| Power on | 16S~20S, high speed turn on system | ||
| Power off | Rearly shut off the OS, <10mA | ||
| work volt | DC12V | ||
| Operate volt range | 10.8V ~16V | ||
| Max current | 10A | ||
| Form Factor | In-Dash | ||
| Enclosure Type | 2 DIN | ||
| Features | GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In, | ||
| Ill control | Yes | ||
| Anti shock | Mechanical anti-shock & Electronic anti-shock | ||
| Motorized slide-down Face | NO | ||
| Panel Angle Control | NO | ||
| Display | |||
| Display mode | 16:09 | ||
| Screen Size | 6.2; 7; 8; 9; 10.1; 10.4 inch | ||
| Touch Screen | Capacitive touch screen | ||
| Screen Resolution | 800*480/1024*600/1024*768 | ||
