Product Details:
Payment & Shipping Terms:
|
| Function: | Support 32g Sd Card | System: | Wince 6.0 |
|---|---|---|---|
| Temperature: | -10℃+70℃ | Frequency Response: | 20Hz-20KHz |
| Model: | Fit For Honda Crider | Color: | Black |
| High Light: | car tv dvd player,bluetooth dvd player |
||

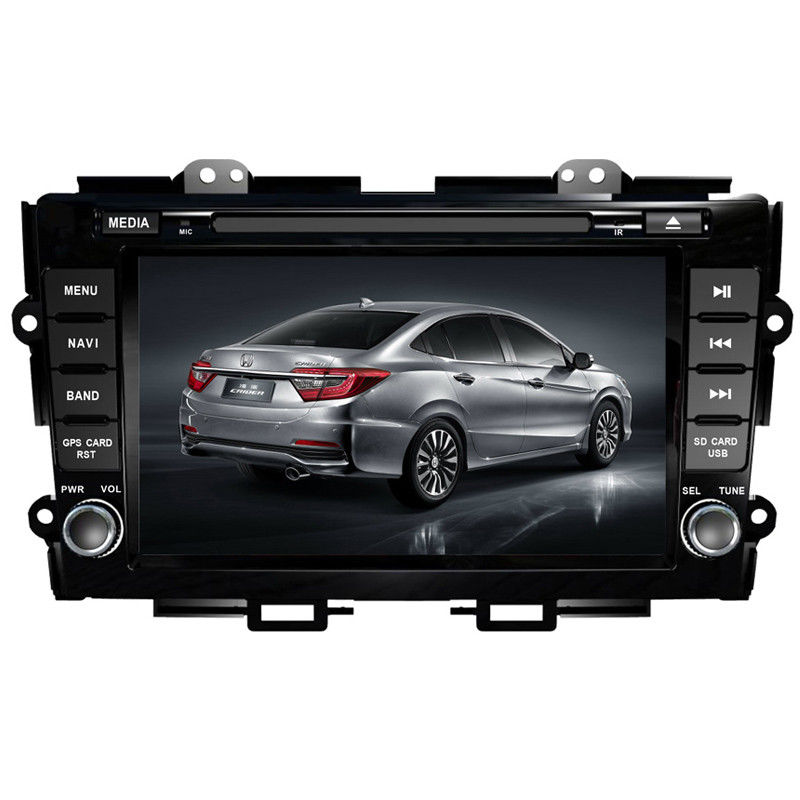

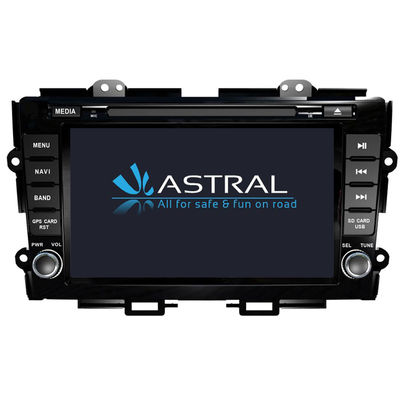

Crider honda navigation system car touch screen with bluetooth gps dvd radio
Description:
Multi-function Entertainment:
- Original OE Design, Plug and Play
- Built-in GPS, Intelligent Voice Guide, Route Plan, Advanced POI
- Support DVD/VCD/CD/MP3/MP4/CD-R/WMA/JPG/MPEG
- Bluetooth with A2DP, Hands Free
- Digital TV: DVB-T/ISDB-T/ATSC (Optional)
- Analog TV (Optional)
- MP3/MP4 Player
- USB Display/SD Display
- 45Wx4 power amplification and 4.1 channel pre-out
- Backlight Dimmer
Software Highlights:
- Windows CE 6.0
- Dual Entertainment
- GUI Customization, Skin Change
- Languages Customized: More than 17 languages optional
- Start Up Imagine, easy to customized
- Bidirectional Copy Files between: USB Flash/SD and Built-in Storage
- Friendly Navigator Path Setting, easy to change
Hardware Advantage:
- SiRF Prima 600MHz CPU, Powerful ARM 11 architecture, 300MHz DSP, faster speed, higher performance
- Internet, G3 & G2 (By WCDMA, CDMA2000, EDGE, GPRS, etc. ) (Optional)
- Mobile Hard Drive: Support (exFAT, 2TB)
- Play and charge: iPhone 3G, iPod (Classic, Nano, Shuffle), iTouch
- Video: RMVB/RM, AVI, MPEG2/MPEG4/H. 264/WMV; D1 resolution, (NTSC: 720*480/PAL: 720*576)
- Support 3D Hardware Acceleration: HD 3D Graphics for real 3D map
- High-Speed USB 2.0: 480Mbps
- 2USB Port, Charge to mobile phone
- Storage: 4GB SD/Micro (standard), support SD & USB up to 64GB
- Built-in Memory: 256MB Nand Flash (standard)
- DDR RAM: 128MB DDR-400MHz (two times than its competitor)
Specifications:
Disc support |
SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX |
| Power voltage | DC 9V-16V |
| Storage | 128M |
| Overload | 4Ω |
| Max power output | 45W x 4 |
| Tone control |
7db |
| Bass 20Hz | |
| Treble 20KHz | |
| Output port | Audio: 4 independent output channels |
| Video: 1 Composite video output channels | |
| Input port |
Audio: 2 independent input channels |
| Video: 3 composite video input channels | |
| Video Features | Video output level: 1.0 VP-P(75Ω overload) |
| Video frequency: 20Hz-20KHz(+1 dB) | |
| Temperature | -10ºC+70ºC |
| Humidity | 15-75% (no water frozen) |
| VCD/CD PART | |
| Video system | Auto/NTSC/PAL |
| S/N(signal to noise ratio) | 60dB( 1KHz 0dB) |
| Resolution | 55dB |
| Frequency response | 20Hz-20KHz |
| Dynamic range | 80dB |
| Distortion | 0.4% |
| DVD PART | |
| Video system | Auto/NTSC/PAL |
| S/N(signal to noise ratio) | 75dB( 1KHz 0dB) |
| Resolution | 60dB |
| Frequency response | 20Hz-20KHz |
| Dynamic range | 80dB |
| Distortion | 0.4% |
| FM PART | |
| Frequency range | 87.5-108.0MHz |
| Practical sensitivity | 22dB |
| Down sensitivity | 9dB |
| S/N(signal to noise ratio) | 60dB (1KHz 0dB) |
| Resolution | 32dB |
| Frequency response | 40Hz -13KHz |
| Medium frequency | 10.7MHz |
| AM PART | |
| Frequency range | 522-1620KHz |
| Down sensitivity | 35dB |
| Practical sensitivity | 28dB |
| S/N(signal to noise ratio) | 45dB (1KHz 0dB) |
| Medium frequency | 450MHz |
| Frequency response | 40Hz-2.3KHz |
