| Operating System: | Android 5.0 Quad-core 64-bit OS | Screen Size: | 6.86 Inch |
|---|---|---|---|
| CPU: | MTK6735 ARM A53 Quad Core 1.3GHz | GPU: | Mali T720 |
| Screen Type: | IPS Scrape-prevent Multi-Touch Screen | Screen Resolution: | 1280×RGB×480 |
| Memory/RAM: | 1GB LPDDR3 | Memory/Flash: | 16GB EMMC |
| Bluetooth Hands-free Phone Call: | Support | Max.Micro SD Capacity Supported: | 128GB |
| Built In: | GPS Navigation/FM Transmitter/WiFi | G-sensor Collision Detection And Emergency File Protection: | Support |
| Front HD Camera: | GC2023 1920*1080P | FHD Rear Camera(Optional): | Support Night Vision Camera/Normal Camera |
| Max. Front Camera View Angle: | 140° | Sound Volume & Screen Brightness: | Adjustable |
| 4G Internet: | Support | Multiple OSD Language Options.: | Support |
| Color Options: | Iron Gray, Black | ADAS: | Optional |
| Video Recording Mode: | Loop Recording | Operating Current: | ≤500mA |
| Operating Voltage Range: | 10V ~16V | Operating Temperature: | -10°C To +60°C |
| Storage Temperature: | -20°C To +70°C | ||
| High Light: | vehicle navigation system,car gps navigation |
||

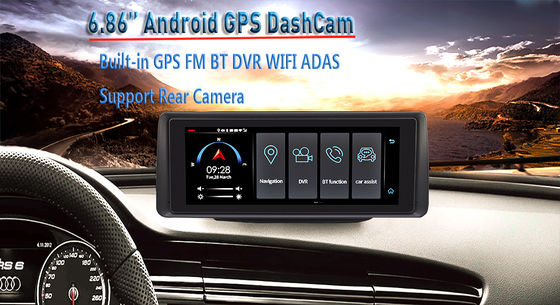

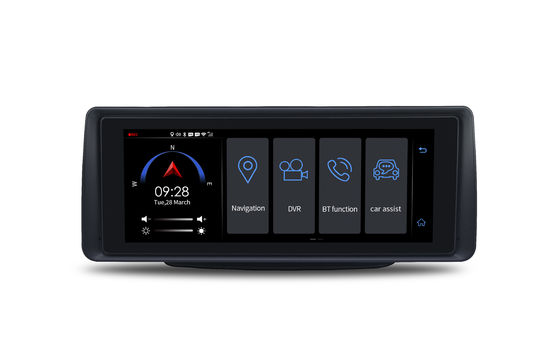

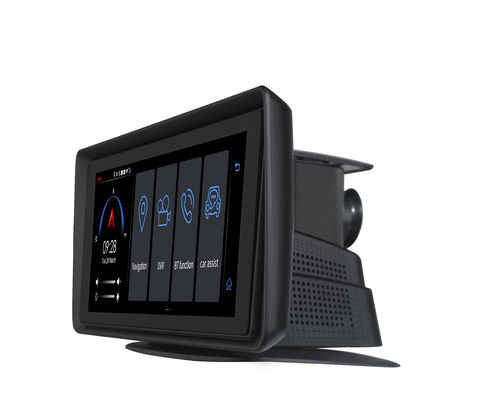

6.86 inch Android 5.0 Dashboard GPS Navigation Dash Cam withFM WiFi Bluetooth ADAS Rear Camera DVR SD 4G 140° GPS Tracker
Main features:
- 6.86 inch IPS HD multi-touch screen (1280*RGB*480).
- Android 5.0 quad core OS, supports WIFI and 4G.
- ARM A53 QUAD CORE 1.3GHz CPU.
- 1GB DDR3 RAM, 16GB ROM.
- Max. Extendable Memory: 128GB micro SD.
- Built-in FM transmitter.
- Built-in Bluetooth for hands-free phone call.
- Built-in GPS navigation.
- Built-in Battery 3.7V/900mAh (Optional).
- ADAS(Advanced Driver Assistance Systems) optional.
- Support Night-vision Rear Camera(optional).
- Support external Rearviewing Camera(Optional) & auto switch.
- Max. Front Camera View Angle: 140°.
- Sound volume & Screen brightness adjustable.
- Google play store pre-installed for Android applications downloading.
- Support GPS tracking and video foortages playback.
- Front & rear camera Dual HD recording.
- Car Assist APP for remote locating and monitoring by mobile phone.
- Multiple OSD language options.
- Color options: Iron Gray, Black.
- Power supply: 10~16V / ≤ 500mA.
- Operating Temp.: -10ºC ~ +60ºC.
- Storage Temp.: -20ºC ~ +70ºC.
| Model | AST-A928 | ||
| System | |||
| Operating System | Android 5.0 quad-core 64-bit OS | Screen Size | 6.86 inch |
| CPU | MTK6735 ARM A53 quad core 1.3GHz | GPU | Mali T720 |
| Memory/RAM | 1GB LPDDR3 | Memory/Flash | 16GB EMMC |
| Screen Type | IPS Scrape-prevent Multi-Touch Screen | Screen Resolution | 1280×RGB×480 |
| Bluetooth Hands-free Phone Call | Support | Max.Micro SD Capacity Supported | 128GB |
| GPS Navigation | Built in | FM Transmitter | Built in |
| WiFi | Built in | G-sensor collision detection and emergency file protection | Support |
| Front HD Camera | GC2023 1920*1080P | FHD Rear Camera(Optional) | Support Night Vision Camera/Normal Camera |
| Max. Front Camera View Angle | 140° | Sound volume & Screen brightness | Adjustable |
| GPS tracking & Video Footage Playback | Support | Video Recording Mode | Loop Recording |
| Auto Switching Camera when reversing | Support | Smart Remote Monitoring (Car Assist App & Built-in Battery needed) |
Operate recorded videos remotely. Locate/Monitor the car remotely. |
| Multiple OSD language options. | Support | Color Options: | Iron Gray, Black |
| 4G internet | Support | ADAS | Optional |
| Mechanical | |||
| Micro SD Slot | Built in | SIM Slot | Built in |
| Net Weight | 1.0kg | Product Dimension | 206mm*110mm*90mm |
| Qty. per Box | 1 pcs | Package Dimension | 265mm*165mm*125mm |
| Accessories | 1*Integrated Power Cable 1*GPS Antenna 1*Rear Camera(Optional) 1*User Manual |
||
| Electrical | |||
| Operating Current | ≤500mA | Operating Voltage Range | 10V ~16V |
| Environmental | |||
| Operating Temperature | -10°C to +60°C | Storage Temperature | -20°C to +70°C |
