Product Details:
Payment & Shipping Terms:
|
System: | Android OS 4.4/6.0/7.1/8.1/9.0 | GPS / Glonass: | Support |
---|---|---|---|
Mirror-Link: | Support | OBD / TPMS: | Optional |
FM|Am: | Support | RDS: | Support |
Aux: | Support | Carplay: | Optional |
Bluetooth: | Support Hands-Free Call&Music Streaming | Easyconnection: | Built-in |
Android Auto: | Optional | Auto Reversing Camera Video: | Yes |
Screen: | HD IPS Capacitive Touchscreen | Plug&Play: | Yes |
WiFi: | Built In | DSP: | Optional |
Built-in 4G SIM: | Optional | Warranty: | 12 Months |
Ram: | 1GB/2GB/4GB | Rom: | 16/32/64GB |
Osd Language: | Multi-language Supported | Car Make: | For Toyota Avalon 2006-2010 |
Screen Size: | 9 Inch | Dual Zone Function: | SUPPORT |
Steering Wheel Control: | Support | DVR: | Optional |
2.5D IPS Touchscreen: | Optional | Original GPS: | Support |
Original Power Amplifier: | Support | Original 360 Panoramic Camera System: | Support |
High Light: | gps auto navigation,in dash navigation systems |
9-INCH Hyundai IX45 Santa Fe 2013-2017 Touchscreen Android Autoradio GPS Navigation Bluetooth Kit with Mirror-Link 4G SIM Steering Wheel Control Apple CarPlay Android Auto DVR TPMS Dual Zone DSP support the car with GPS navigation and 360 Panoramic system and power amplifier
System
Private Molding Design for Hyundai Santa Fe IX45 2013-2017

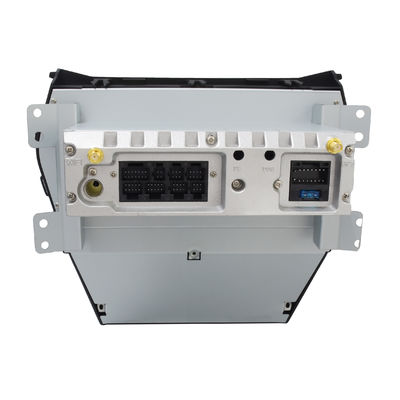

Pin-to-Pin connectors and standard wiring harness for plug & play.
Support original Steering Wheel Control (SWC).
Support Dual Zone.
4 x 45w Surround Stereo|Subwoofer output power.
OS & display

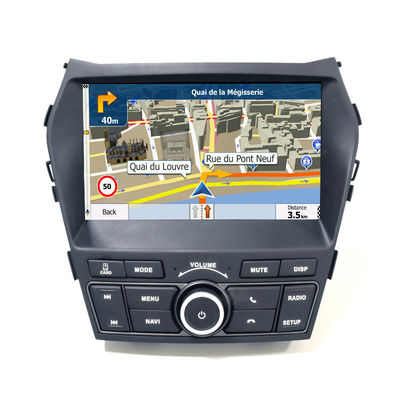

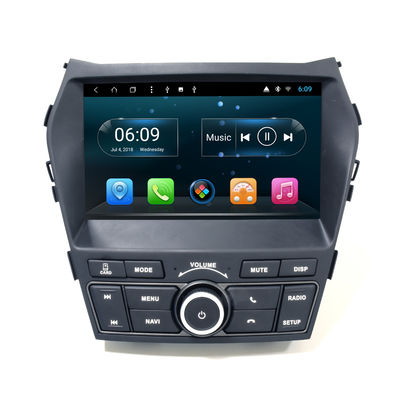

9 inch capacitive multi-touch screen.
Multiple Android solutions: Android 4.4|6.0|7.1|8.1|9.0 Quad-core|Octa-core OS with 1GB|2GB|4GB RAM 16GB|32GB|64GB ROM optional.
Navigation & Radio
Built-in GPS|A-GPS|Glonass, and support multiple Android apps for navigation.
Built-in FM|AM Radio Tuner with RDS supported.
Connectivity
Built-in WiFi, and support built-in 4G SIM (optional) for dedicated Android os option.
Mirror-link for connecting with Android|IOS phone.
Bluetooth for hands-free calling and music streaming.
Apple CarPlay|Android auto optional.
Specifications details
General | |||
Operating system | Android 64-bit OS 6.0|7.1|8.1|9.0 | Processor | Quad|Octa Core CPU, 1.6GHz |
Memory|RAM | 1GB|2GB|4GB | Mirror-Link | Built in |
Memory|ROM | 16GB|32GB|64GB | Steering Wheel Control | Support (CANBUS decoder needed for some models) |
Display | |||
Screen Size | 9 inch | ||
Screen type | Capacitive multi-touch screen | Dual Zone | Support |
Resolution | 1024*600 | Automatically switch to rear camera when reversing | Yes |
Navigation | |||
Built-in Navigation | Support GPS|A-GPS and Glonass | Supported Android APP for navigation | TOMTOM, ROUTE66, IGO, NAVITEL, SYGIC, Yandex, Waze, etc. |
Internet Access | |||
3G|4G | Support (need external 3G|4G dongle via USB) | WiFi | Support |
Bluetooth | |||
Hands-free phone call | Support | Hands-free phone call | Support |
Bluetooth music streaming | Support | Bluetooth music streaming | Support |
Multimedia | |||
Audio format supported | MP3, WMA, AAC, RM, FLAC, etc. | Video format supported | AVI, MKV, MOV, MP4, MPEG, MPG, RMVB, H.265, etc. |
Photo format supported | JPG, BMP, JEPG, GIF, PNG, etc. | 1080P video playback | Support |
Radio | |||
Radio tuner | FM|AM | Qty. of preset FM|AM stations | 36 Preset Radio Stations (FM: 3*6, AM: 3*6) |
RDS | Support | DAB+ | Support external DAB+ receiver by USB |
Radio response bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz | ||
Audio Stereo | |||
Amplifier output power | Channel Qty. | 45W*4 | Subwoofer | Support |
Multiple EQ modes | Yes | Audio output channel | Audio 5.1 |
Mechanical | |||
Form factor | In-Dash | Audio output | 4 Channels |
Enclosure type | 1 DIN | Subwoofer output | 1 Channel |
Video input | 3 Channels: 1 for DVR, 1 for Camera, 1 for Aux in | Antenna | 2 totally: 1 for GPS,1 for WiFi |
Video output | 1 Channel | Support USB & micro SD | Yes |
Audio input | 2 Channels | ||
Electrical | |||
Quick booting & shut | Yes | Max. operating current | 10A |
Anti-Shock design | Mechanical anti-shock & Electronic anti-shock | Rated working voltage | DC 12V |
Standby current | ≤10mA | Operating voltage range | 10.8V ~16V |
