Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Operation System: | Android 6.0|7.1|8.0|9.0 |
|---|---|---|---|
| CPU: | Quad Core|octa-core 1.6GHz | Screen: | Multi-touch Capacitive Screen |
| RAM: | 1GB|2GB|4GB | ROM: | 16GB|32GB|64GB |
| OSD Language: | Multi-language,English/Russian/Spanish/French/Portuguese/Arabic/Dutch Etc | Screen Size: | 10.1 Inch |
| GPS: | Support | Type: | Touch Screen Car Stereo |
| Bluetooth: | Support | Dual Zone Function: | SUPPORT |
| Steering Wheel Control: | Supported | WiFi: | Built In |
| CarPlay: | Optional&Support By USB | DSP: | Optional |
| Built-in 4G SIM: | Optional | Android Auto: | Support By USB |
| USB: | Support | FM|AM Radio: | Built In |
| High Light: | gps in car navigation,gps auto navigation |
||
Quick details:

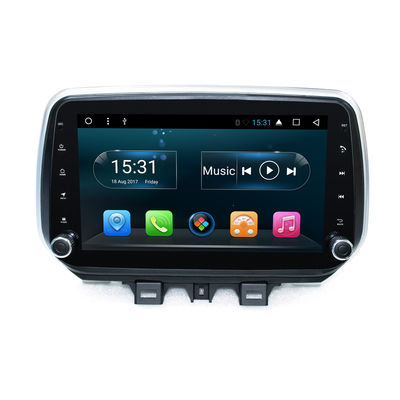

- Suitable for cars: Hyundai Tucson IX35 2019
- 10.1 inch high sensitive HD multi-touch screen.
- Multiple Android solutions optional: Android 6.0/7.1/8.1/9.1 Quad-core/Octa-core OS with 1GB/2GB/4GB RAM, 16GB/32GB64GB ROM.
- Multiple OSD language options: English, Russian, Arabic, German, Spanish, French, etc.
- Support Rear View Camera (optional), Digital TV Receiver (optional), DVR/Video input.
- Built in GPS/A-GPS/Glonass navigation, and support multiple navigation softwares installation.
- FM/AM Radio Tuner with RDS, and up to 36 preset radio stations. Also support external DAB+ receiver.
- Support iPod ready stereo, external USB flash, SD cards.
- Built-in WiFi, and support external 3G/4G dongle via USB for internet access.
- Integrated mirror-link for connecting with Android/IOS phone, and CarPlay/Android Auto optional.
- Support original Steering Wheel Control (SWC).
- Hands-free Bluetooth for making calls or playing stereo music from phones, support A2DP and Bluetooth OBD (optional).
- 4 x 45w Surround Stereo/Subwoofer output, and support multiple EQ modes.
- Dual Zone function.
- Support CarPlay by USB.
- Built-in 4G SIM and DSP optional.
Android specifications:
| System | |||
| Operating System (OS) | Android 4.4|6.0|7.1|8.1|9.0 | CPU | Cortex A7 Quad|Octa Core 1.6GHz |
| Memory/RAM | 1GB|2GB|4GB DDR3 | Mirror-Link | Built in |
| Memory/ROM | 16GB|32GB|64GB EMMC | CarPlay/Android Auto | Optional |
| Max.Micro SD Capacity Supported | 1TB | DVR(Optional) | Support |
| Steering Wheel Control | Support (CANBUS needed) | TV Receiver(Optional) | Support Analog|Digital TV( DVB-T, ISDB-T,DVB-T2) |
| OSD Language Options | English, Russian, Arabic, German, Spanish, French, Thai, Italian, Vietnamese,etc. | ||
| Display | |||
| Screen Type | HD LCD-TFT, Scrape-prevent, Multiple Touch, Digital Capacitive screen | Screen Size | 10.1 inch |
| Resolution | 1024*600 | ||
| Navigation | |||
| Navigation | Built-in GPS/A-GPS and Glonass | Maps Storage | Built in or external SD card |
| Navigation Softwares Supported | TOMTOM, ROUTE66, IGO, NAVITEL,SYGIC, etc | Navigation Language | Depends on map software options |
| Others | Music/Radio/Bluetooth…can still work when GPS navigation is working | ||
| Network | |||
| 3G/4G-LTE | Supported, external 3G/4G dongle via USB needed | WiFi | Built in |
| Bluetooth | |||
| Bluetooth | BT4.2 | Support | A2DP and Bluetooth OBD |
| Audio/Video | |||
| Audio/Video | Support most mainstream audio/video formats | Reversing Camera(Optional) | Support |
| Audio Signal-to-Noise Ratio | ≥85dB | Reversing Video Display | Quick switch within 2s |
| Radio | |||
| RDS | Support | Radio Response Bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz |
| Station Preset Qty. | 36 Preset Radio Stations (FM: 3*6, AM: 3*6) | Radio Tuner | FM|AM |
| Amplifier | |||
| Amplifier Output Power / Channel Qty. | 45W*4 | Subwoofer | Support |
| EQ Modes | Normal, Jazz, Pop, Classical, Rock, News, Urban, Techno | Audio Output Channel | Audio 5.1 |
| Loudness Control | Yes | ||
| Mechanical | |||
| Form Factor | In-Dash | Audio Output | 4 Channels |
| Enclosure Type | 1 DIN | Subwoofer Output | 1 Channel |
| Video Input | 3 Channels, 1 for DVR, 1 for Camera, 1 for Aux in | Antenna | 2 totally:1 for GPS,1 for WiFi |
| Video Output | 1 Channel | USB | 2 Channes, USB3.0 |
| Audio Input | 2 Channels | Max.SD Slot Qty. | 2 |
| Micphone(MIC) | External, and support in-built MIC for some models(optional) | Max. Operating Current | 10A |
| Electrical | |||
| Power On | 16S~20S, quick booting up | Standby Current | ≤10mA |
| Power Off | Within 2S | Max. Operating Current | 10A |
| Shut off Display | Press POWER shortly to activate | Rated Working Voltage | DC12V |
| Anti Shock | Mechanical anti-shock & Electronic anti-shock | Operating Voltage Range | 10.8V ~16V |
| Environmental | |||
| Operating Temperature | -20°C to +70°C | Storage Temperature | -30°C to +80°C |
Why Astral Electronics?
1. OEM factory since 2009, with years of experiences in working with car manufacturers or well-known brands.
2. Hundreds of models available for different car brands, and keep releasing new products regularly.
3. Support Customization, and developing special designs as required available.
4. Quality guarantee by Systemized & Standardized quality system: OCA lamination for screen assembly, 8-plus hours aging test, high/low temperature test, Vibration test, 100% QC passed before delivery, etc.
5. CE/RoHs approved products, and other certificates available.
6. Multiple material sources to ensure stable supply and on-time delivery.
7. Local technical support negotiable.
Q&A
Q: What to provide for Astral sales team's further check if uncertain about the model fits a car or not?
A: 1. Manufactured year of the car.
2. Car dash pictures.
3. Check if the car has factory accessories like rear camera, parking radar, power amplifier, subwoofer, 360 panorama camera system, built-in GPS navigation, automatic or manual climate control system, etc.
Q: What could be customized?
A: 1. Customized logo display or print on the device
2. Customized UI
3. Design a customized gift box/carton for packing
4. Develop special applications for Android
5. Others
